In the construction of railways and highways through complex terrain, tunnels are critical for ensuring straight routes and reducing travel distance. However, the enclosed interior of a tunnel presents a harsh environment with high humidity, significant temperature variations, and severe attenuation of wireless signals due to the reinforced concrete structure. This poses a major challenge for the real-time monitoring and reliable data transmission essential for operational safety and equipment status. Deploying a highly reliable industrial communication network capable of withstanding such demanding conditions is fundamental to ensuring tunnel operational safety.
Tunnel monitoring networks face multiple tests:
Harsh Environment: High internal humidity, dust, and significant temperature fluctuations.
Signal Attenuation: Physical structure leads to unstable wireless communication, while wired transmission demands extreme reliability.
High Reliability Requirements: Surveillance video and sensor data must be transmitted back continuously and in real-time; any interruption could compromise safety decisions.
Difficult Maintenance: Equipment is distributed over long distances, requiring support for remote management and rapid fault localization.

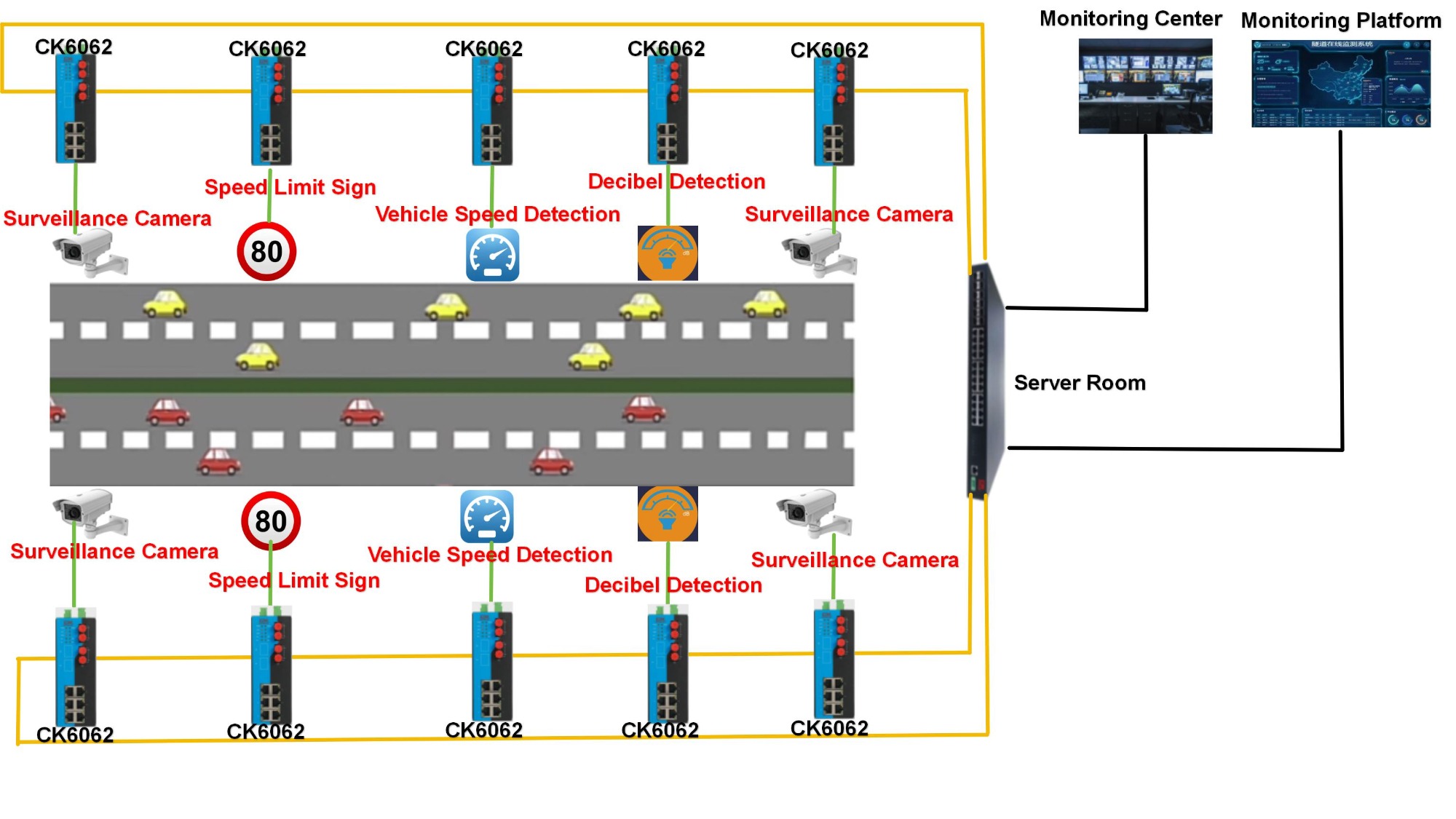

To address these challenges, we recommend deploying a redundant fiber optic Ethernet solution centered on the Comark CK6062 Industrial Ring Network Switch. This solution involves laying fiber optic cables along the tunnel to create a communication backbone immune to physical layer interference and capable of millisecond-level self-healing.
Core Value of the Solution:
Stable Transmission: The CK6062 operates reliably in an extended temperature range from -40℃ to 85℃, adapting to extreme tunnel environments.
Zero-Interruption Guarantee: Featuring CK-Ring self-healing ring network technology, the network can automatically recover in <20 milliseconds in the event of a single point of failure, ensuring "zero-interruption" for monitoring data streams.
Real-Time Monitoring: Provides a high-bandwidth, deterministic low-latency data channel for HD video surveillance, environmental sensors, and other systems.
Simplified Operations: Supports multiple management methods including Web, CLI, and SNMP, enabling remote configuration and intelligent alarm reporting.

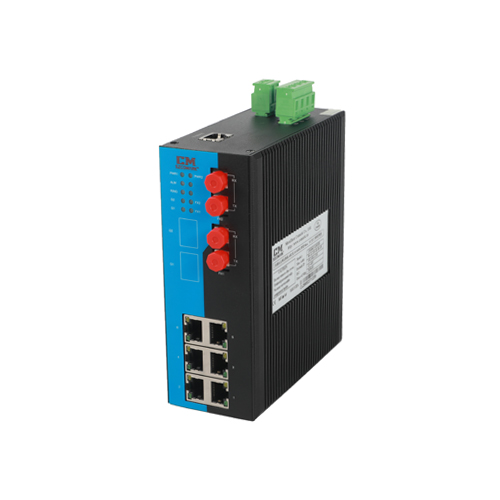

Ⅲ. Core Product Advantages: The CK6062 Industrial Ring Network Switch
️ Rugged Industrial Design
IP40-rated enclosure and industrial-grade EMC design provide dust resistance and interference immunity for harsh electrical environments.
Fanless, low-power design ensures reliable operation and supports DIN-rail or wall-mount installation.
⚡ Millisecond-Level Self-Healing Redundant Network
Supports CK-Ring & RSTP protocols, achieving fault recovery in <20 ms under full load, meeting the stringent real-time requirements of video surveillance.
Supports various topologies including single ring, tangent ring, and intersecting ring for easy network expansion and flexible deployment.
Comprehensive Management and Security
Offers diversified management via Web, CLI, and SNMP for remote O&M.
Features including Port-based VLAN, QoS, bandwidth management, and port mirroring prioritize and guarantee video stream transmission.
Includes relay alarm output for real-time notification of power, port, and ring network status anomalies.
Ⅳ. Industry Application Cases
The CK6062 series switches, renowned for their high reliability and environmental adaptability, have become the communication solution of choice in multiple critical infrastructure sectors:
️ Subway Tunnel Environmental & Equipment Monitoring
Challenge: Enclosed subway tunnel spaces house numerous electromechanical devices (ventilation, lighting, drainage) requiring a stable network for environmental monitoring and coordinated equipment control.
Solution: Form a ring network using CK6062 switches to connect various sensors and PLC controllers.
Result: Enables real-time collection of environmental parameters and remote intelligent start/stop of equipment, enhancing safety management efficiency and reducing operational costs.
️ Highway Tunnel Safety & Control Systems
Challenge: Long tunnels require integration of multiple systems like video surveillance, fire alarms, traffic signals, and emergency broadcasting. Network downtime directly impacts traffic safety.
Solution: Employ CK6062 switches to build a redundant ring network serving as a unified data transmission platform for all subsystems.
Result: Ensures reliable, real-time transmission of all critical safety data (e.g., fire signals, video streams), providing stable network support for emergency command centers.
⛏️ Mining Underground Communication & Sensor Networks
Challenge: The underground environment is harsh, with presence of gas and dust, and complex roadway structures, demanding explosion-proof equipment and extremely high network reliability.
Solution: Utilize industrial switches (based on the CK6062 platform) with explosion-proof or intrinsically safe designs to build a redundant transmission ring network underground.
Result: Provides a "never-interrupted" data channel for personnel tracking, safety monitoring, and equipment telemetry systems, solidifying the foundation for safe production.
Ⅴ. Conclusion
The core requirements for monitoring networks in tunnels and similar harsh environments are "reliability" and "real-time" performance. The Comark CK6062 Industrial Ring Network Switch, with its rugged industrial design and <20 ms self-healing capability, perfectly meets these challenges, transforming unstable environments into manageable, controllable, and visible digital spaces. It is not merely a data transporter but a reliable cornerstone ensuring operational safety and enhancing management efficiency.
Should you require more detailed solutions or product configuration lists for specific scenarios (e.g., smart utility tunnels, water conservancy projects), we are ready to provide further technical support.
