Ⅰ. Project Overview

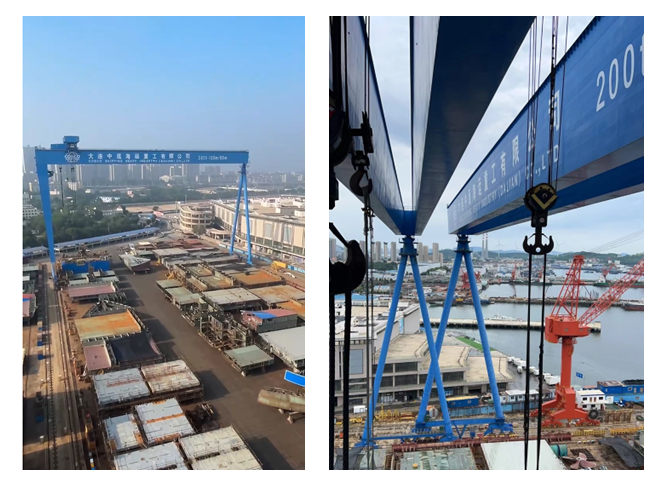

In networking scenarios involving heavy mobile equipment like port cranes, traditional wired transmission methods face fundamental challenges. The physically separated and continuously moving nature of the equipment makes cable installation extremely difficult, costly, and prone to damage. To address this core issue, we propose a coverage network solution based on wireless base stations, using wireless connectivity to overcome physical limitations.
Ⅱ. Solution: High-Reliability Wireless Base Station Network

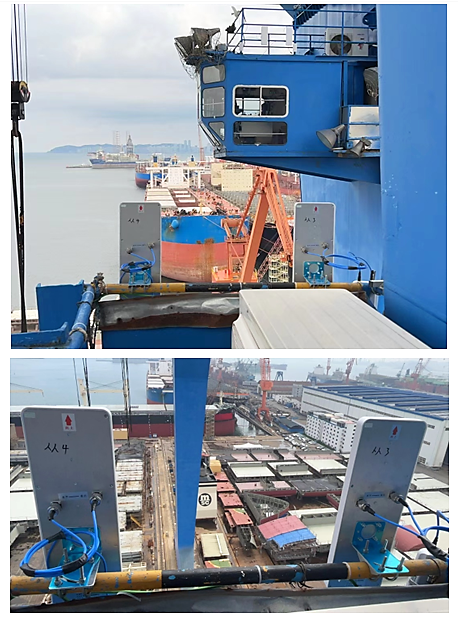

This solution employs Comark industrial wireless base stations to build a dedicated network, completely eliminating wiring hassles. It supports long-distance point-to-point and point-to-multipoint transmission, suitable for vast areas like ports and factories, delivering lasting and stable high-quality wireless service through a one-time deployment.
Core Design Features:
Dedicated Frequency Band, Strong Anti-Interference: The complex electromagnetic environment at ports often interferes with common 5.2/5.8GHz bands. This solution utilizes 6GHz spread spectrum technology, effectively avoiding public band congestion, significantly reducing latency and packet loss, and ensuring stable transmission for control data and video streams.

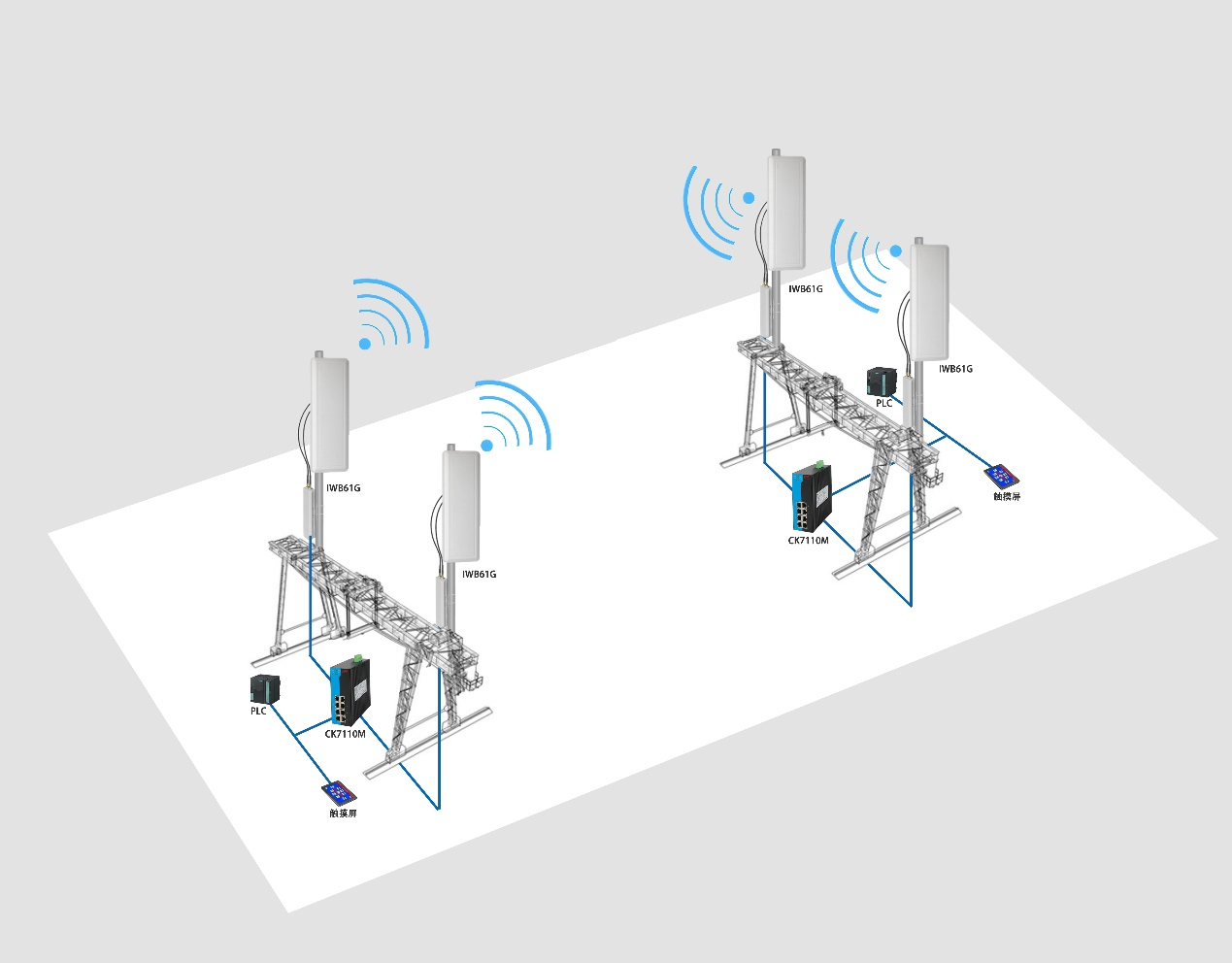

Ring Network Redundancy, Uninterrupted Links: Wireless base stations are configured in a dual-homed ring structure, leveraging the CK-Ring self healing ring network technology of Comark industrial Ethernet switches. If any node or link in the network fails, the system can automatically and seamlessly switch between primary and backup links within 20 milliseconds, guaranteeing "zero-interruption" data transmission.
️Industrial-Grade Design for Harsh Environments: All equipment meets industrial reliability standards, specifically designed to withstand harsh port conditions such as high humidity, salt spray, temperature variations, and vibration.
Ⅲ. Equipment Technical advantages
This solution integrates high-performance wireless base stations and industrial Ethernet switches, forming an end-to-end reliable communication architecture.
Wireless Coverage Base Station Highlights:
1️⃣Intelligent Wireless Connectivity: Supports multiple modes including Access Point, Station, WDS, and TDMA. Features intelligent dynamic polling, automatic channel and modulation selection, and Automatic Transmit Power Control (ATPC) to dynamically optimize wireless links.
2️⃣Comprehensive Network Security: Provides WPA/WPA2 Personal and Enterprise encryption, Access Control Lists (ACL), and user isolation for end-to-end security.
3️⃣Flexible Network Integration: Supports dual stack IPv4/IPv6, VLAN, and VLAN transparent transmission for easy integration with existing network management systems.
4️⃣Efficient O&M Management: Offers multiple management methods including Web, SSH, and SNMP, integrated with tools like site survey and link testing for simplified deployment and maintenance.

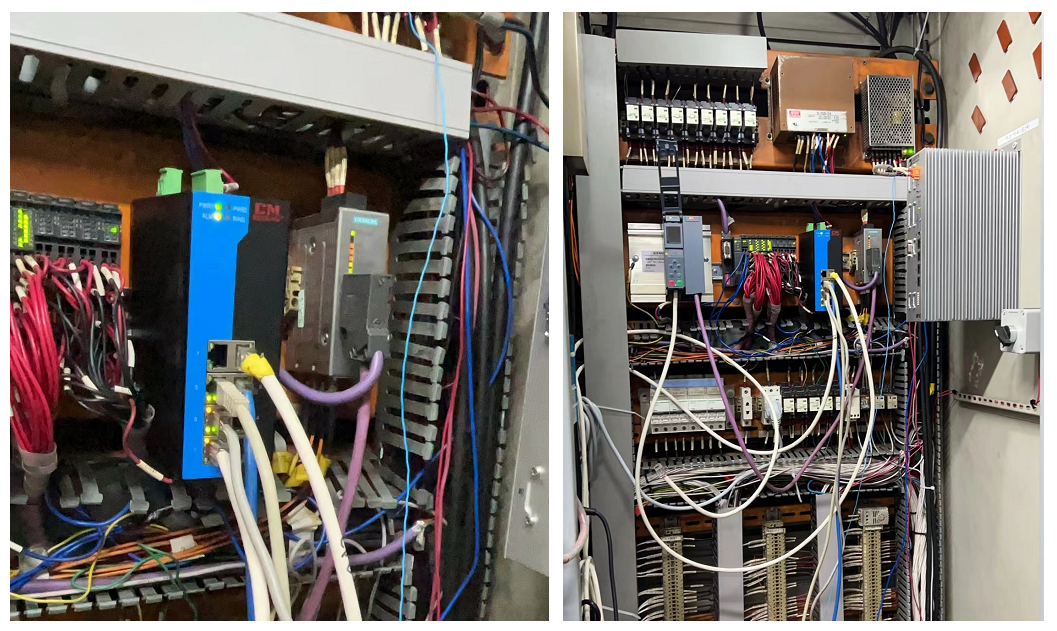

Industrial Ethernet Switch Core Functions:
1️⃣Multi-Layer Redundant Protection: Supports industrial ring network protocols like CK-Ring and ERPS with a recovery time of <20ms. Also supports RSTP/MSTP to build a reliable backbone network without single points of failure.
2️⃣Granular Traffic Control: Supports port bandwidth limiting, aggregation, mirroring, and priority-based QoS policies to ensure absolute priority for critical service data flows like crane control.
3️⃣Deep Industrial Protocol Support: Fully supports industrial multicast protocols like IGMP Snooping and GMRP, meeting the real-time multicast requirements of automation control systems.
4️⃣Centralized Visual Management: Allows unified management via Web, CLI, and SNMP, and supports relay alarm output for real-time network status monitoring and rapid fault identification.
IV. Conclusion
The Comark Wireless Base Station Coverage Network Solution successfully addresses the core challenges of "difficult wiring, high interference, and demanding reliability" in mobile port crane scenarios through its dedicated anti-interference frequency band, carrier-grade ring network redundancy, and industrial rugged design. It transforms an unstable wireless environment into a dependable channel for critical production data, forming a solid foundation for the intelligent interconnection of port equipment and the enhancement of overall operational efficiency and safety.
