Name: Ci-GG30
Brand: Comark | Industrial Ethernet Switch | Industrial Fieldbus | Device Networking
SKU: 00156
Availability: InStock
Rating: 5 (1 reviews)

Home > Industrial Fieldbus > Fieldbus HUB Repeater

Overview Specifications Models Resources

Overview

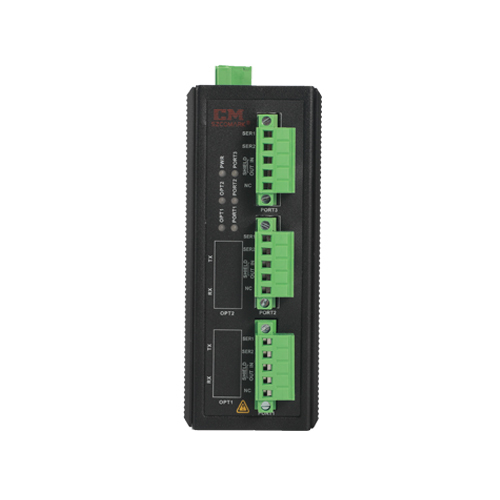

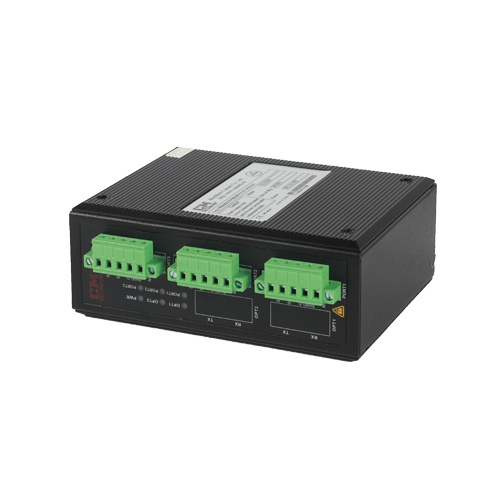

Overview of Genius HUB Repeater

This series is designed for industrial grade Repeater GE Genius HUB. It provide 3 channels fieldbus serial ports data communication. The hub repeater support star topology. It can extend the fieldbus transmission distance and change fieldbus diagram. Additionally, it has photon-coupled isolation for suppressing signal interferences on the bus. The baud rate can be set by DIP switches.
The product is industrial grad designed, casing: IP40 protection, DIN rail mounting, DC (9~36V) power input, support Fieldbus ports error Relay alarm output, dual redundant power input and isolation protection. -40~85°C Operating Temperature, can meet various Industrial situation.

Specifications

Specifications of Genius HUB Repeater

Serial Port	GE Genius Fieldbus SER1, SER2 industrial terminal wiring Support for GE Genius Fieldbus protocol Baud Rates: 38.4Kbps、76.8Kbps、153.6Kbps (default) Signal Delay (electrical interface): ≤6Bit Isolated voltage 1KV, 4KV Anti-thunder protection Without terminal resistor, connect external when necessary
Power Supply	DC (9~36V) dual redundant power input Industrial standard voltage DC 24V, Consumption is less than 4W DC 1500V voltage isolation and reverse connect protection 5.08mm pitch terminal blocks
Protection	Relay: Fieldbus ports error Relay alarm output Contact rating: 1A @24V DC, Industrial Terminal port
Mechanical	Dimensions (H×D×W): 136mm×104.8mm×52.8mm Weight: 800g Casing: IP40 protection, wave grain aluminum reinforce case option Installation: Wall mounting or DIN rail mounting
Environmental	Operating Temperature:-40℃~85℃ Storage Temperature: -40℃~85℃ Ambient Relative Humidity: 5%~95%(non-condensing)
Certification	IEC61000-4-2 (ESD): Power ±2KV Contact, ±15KV Air Relay ±2KV Contact, ±15KV Air; Data Cable ±15KV Air IEC61000-4-4 (EFT):Power ±4KV, Data Cable ±4KV IEC61000-4-5 (Surge):Power ±2KV CM/ ±1KV DM, Relay±2KV CM/ ±1KV DM IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) IEC61000-6-2 (General Industrial Standard)
Warranty	5 years

Models

Models of RS-485 Bus HUB Repeater

Available Models	Features
Ci-GG30	3xGE Genius ports，Baud rate 153.6Kbps (4Kbps, 76.8Kbps optional)

Resources

Name	Version	Date
Ci-GG30 Series Datasheet	V1.2.0	2024-08-30
Ci-GG30 Series Quick Installation Guide	V2.0.1	2024-08-30
