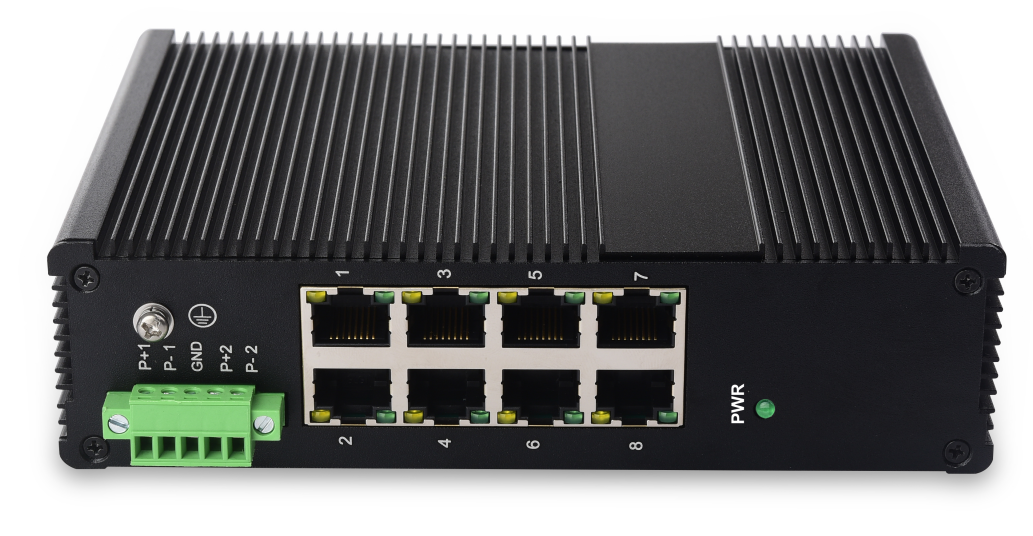

Overview of 100M Unmanaged (DIN-Rail) Industrial Ethernet Switch
The CK1000-8T series is a 100M Unmanaged (DIN-Rail) Industrial Ethernet Switch, supporting 8*10/100MBase-T self-adaptive RJ45 ports. The products also adopt with fan-free, low power consumption design, IP40 protection, a corrugated high-strength metal shell, which can enhanced stability of working performance. The product adheres to CE, FCC, and RoHS standards. -40~85°C operating temperature range enable to withstand harsh working environments. DIN-Rail installations, which can meet the requirements of various industrial settings, make it an ideal solution for quickly and reliably connecting users' Ethernet devices. The equipment can be widely used in various broadband data transmission fields, such as intelligent buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy, and oilfields.
|
Interface |
8*10/100MBase－T |
|
PoE (Optional) |
PoE Ports：1-8 |
|
Network Topology |
Star Topology |
|
Switching Characteristic |
Switching Capacity：1.6G |
|
Power Supply |
Input Voltage DC10~55V（PoE/DC48~55V） |
|
Physical Characteristic |
Dimensions(W×H×D): 158×118×42 mm Weight: 0.75kg Case: IP40 metal case Install: DIN-Rail |
|
Environment Limits |
Work Temp: -40~+85°C |
|
Industrial Standard |
IEC 61000-4-5 Level 3（4KV/2KV）（8/20us） |
|
Warranty |
5 years |
|
Available Models |
Features |
|
CK1000-8T |
8*10/100MBase-T self-adaptive RJ45 ports (default SC interface, ST/FC optional, Single-mode/Multi mode optional). DIN-Rail installation. -40℃~+85℃ |
|
Name |
Version |
Date |
|
V1.2 |
2024-10-22 |
