CRS3220/3228 series

Name: CRS3220/3228 series
Brand: Comark | Industrial Ethernet Switch | Industrial Fieldbus | Device Networking
SKU: 00193
Availability: InStock
Rating: 5 (1 reviews)

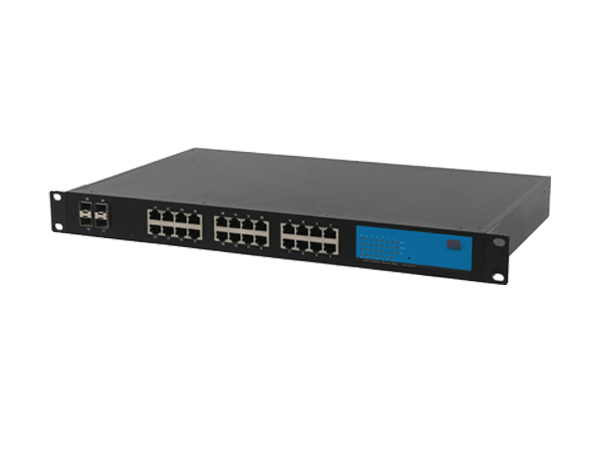

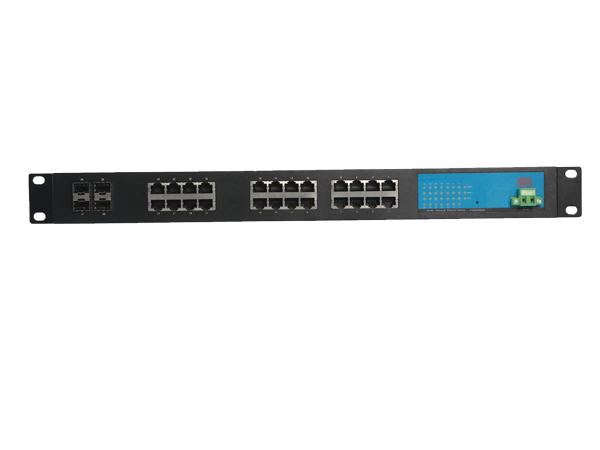

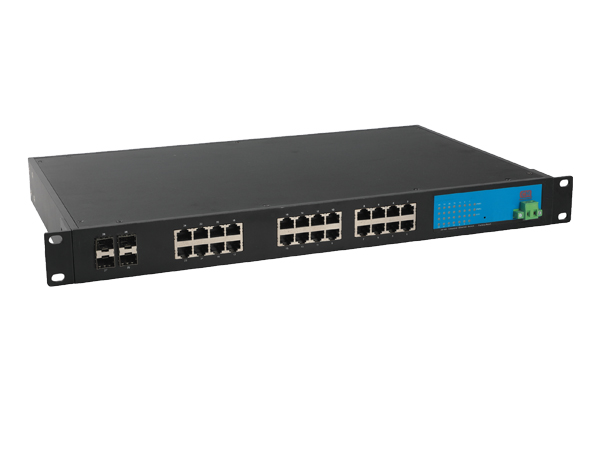

28-Port GE Unmanaged Industrial Ethernet Switch

* Max to 24*10/100/1000BASE-T(X) RJ45 ports;
* Max to 8*100/1000BASE-F(X) speed Auto-negotiation SFP fiber ports (SC/ST/FC support 1000BASE-X only);
* 4*Gigabits SFP slots, any support 1000M SFP fiber module(support SM/MM) or electrical module;
* High strength IP40 shell and industrial-grade EMC design;
* Support redundant dual voltage 110/220VAC power input, or 220V DC or 48V DC power input;
* Support the standard 19" rack-mountable installation, optional wall-mounted installation;
* Operating temperature range: -40~85℃, suitable for industrial environment applications

Add to Inquiry Contact Us

Overview Specifications Models Resources

Overview

Overview of 28-Port GE Unmanaged Industrial Ethernet Switch

CRS3220/3228 series are rack-mount switches designed for industrial applications, such as traffic control system, electric power network system, various kinds of wind power photovoltaic system. CRS3220/3228 series support gigabit and fast Ethernet backbone network, and the isolation of dual power input (48VDC or 220VDC or 110/220 VAC), enhance the communication stability, save the customer network cabling costs. CRS3220/3228 series have different ports combination to meet the diverse needs for all kinds of industrial environment.

Specifications

Specifications of 28-Port GE Unmanaged Industrial Ethernet Switch

Standard & Protocol	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z
Interfaces	RJ45 port: 10/100/1000BASE-T(X) Auto-Negotiation speed, auto duplex mode and MDI/MDI-X connection SFP port: 1000BASE-X SFP fiber port, fiber module (single-mode and multimode) and SFP electrical module Fiber port: 1000Base-X full Duplex (default SC port, FC/ST optional), max to 120 km
Exchange attribute	100 Mbp forwarding speed:14881pps;Fast forwarding speed:148810pps;Gigabit forwarding speed:1488096pps Transmission way: Storage and forwarding System Switching bandwidth: 56Gbps Cache size: 1.5 Mbytes. MAC address table: 16 k
Power Supply	Wide range of redundancy dual 100~240V AC(50～60Hz 1.2A) voltage power input, Using three-wire single-phase power cord Wide range of redundancy dual 220V DC(48V DC optional) voltage power input, adopt 2 cores 7.62mm industrial terminal port,Built-in over-current protection
Physical Characteristic	Dimension(W×H×D): 482.6mm×44mm×275mm Weight: 3.15 Kg Shell: IP40 Class Protection, Metal Shell Installation: 1U standard rack
Environment Limits	Work temperature : -40~85°C Storage temperature : -40~85°C Relative Humidity:5%~95%(non-condensing)
Industrial Standard	IEC61000-4-2(ESD): ±6KV touch,±15KV air IEC61000-4-3(RS): 10V/M (80-1000MHZ) IEC61000-4-4(EFT): Power cable ±4KV, data cable ±2KV IEC61000-4-5(Surge): Power cable ±2KV CM/±1KV DM, data cable ±2KV IEC61000-4-6(CS): 3V(10KHZ-150KHZ),10V(150KHZ-80MHZ) IEC61000-4-16: 30V(cont.),300V(1s) IEC60068-2-6 IEC60068-2-27 IEC60068-2-32 IEC61000-6-2 IEC61750-3 IEEE1613 EN50121-4
Warranty	5 years

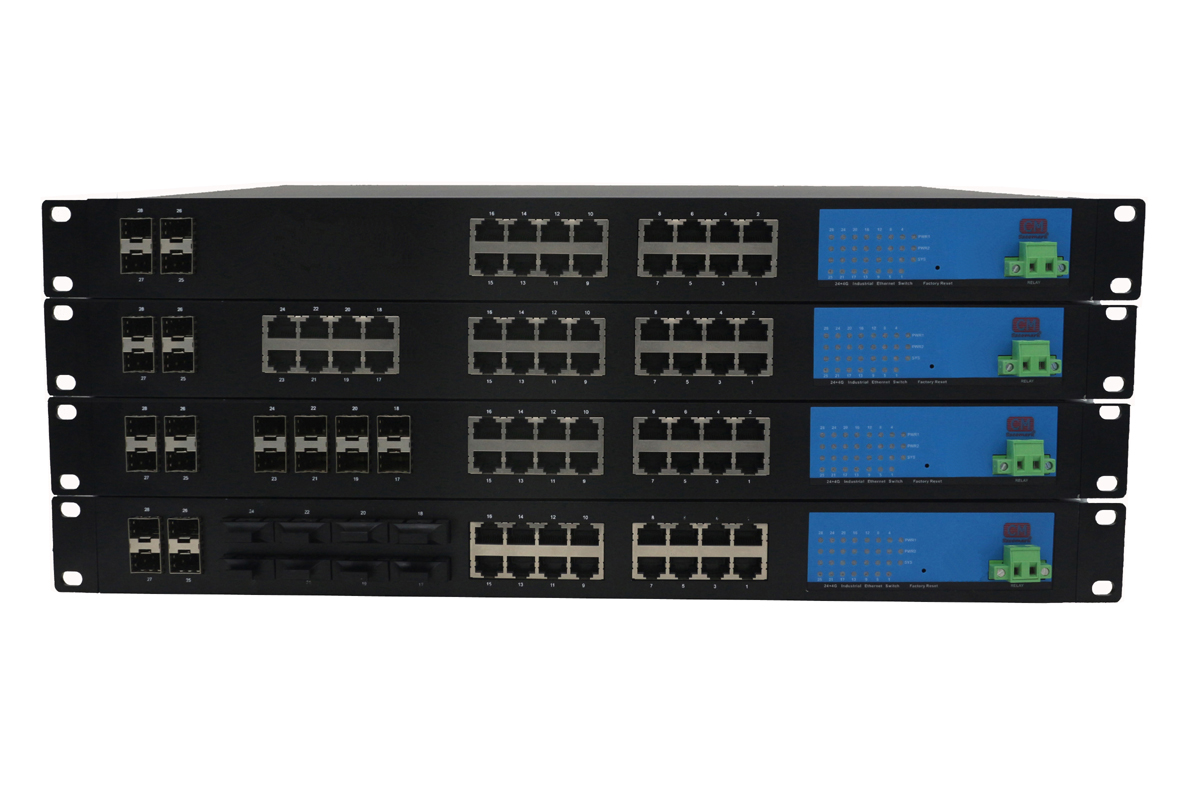

Models

Available Models	Gigabit Copper Port	Gigabit Fiber Port	Gigabit SFP Slot
CRS3228-8TX	24	—	4
CRS3228-8FX	16	8	4
CRS3228-8SFP	16	—	12
CRS3220	16	—	8

Resources

Name	Version	Date
CRS3220/3228 Series Datasheet	V1.2	2024-08-08
