CRS7228M-6T2F

Name: CRS7228M-6T2F
Brand: Comark | Industrial Ethernet Switch | Industrial Fieldbus | Device Networking
SKU: 200
Availability: InStock
Rating: 5 (1 reviews)

100M Managed (DIN-Rail) Industrial Ethernet Switch

▇ 2*100Base-FX optical ports, 6个10/100Base-TX self-adaptive RJ45 interfaces.
▇ Support IEEE802.3i，IEEE802.3u，IEEE802.3ab，IEEE802.3z，IEEE 802.3af/at Standards.
▇ Equipped with DC10-55V wide voltage dual power supply redundancy and anti-reverse connection protection.
▇ Designed with a four-level lightning protection chip, effectively resisting lightning strikes below 8KV and static electricity 8-15KV.
▇ Fully industrial-grade materials, with IP40 protection, low power consumption, industrial design: working temperatures range of -40~85℃.
▇ Encased in a corrugated high-strength aluminum alloy shell, DIN-rail installation.
▇ Passed the inspection report of the Ministry of Public Security: CCC、FCC、CE、RoHS
▇ Support PoE expansion, IEEE802.3af: maximum power of 15.4W, IEEE802.3at: maximum power of 30W

Add to Inquiry Contact Us

Overview Specifications Models Resources

Overview

Overview of 100M Managed (DIN-Rail) Industrial Ethernet Switch

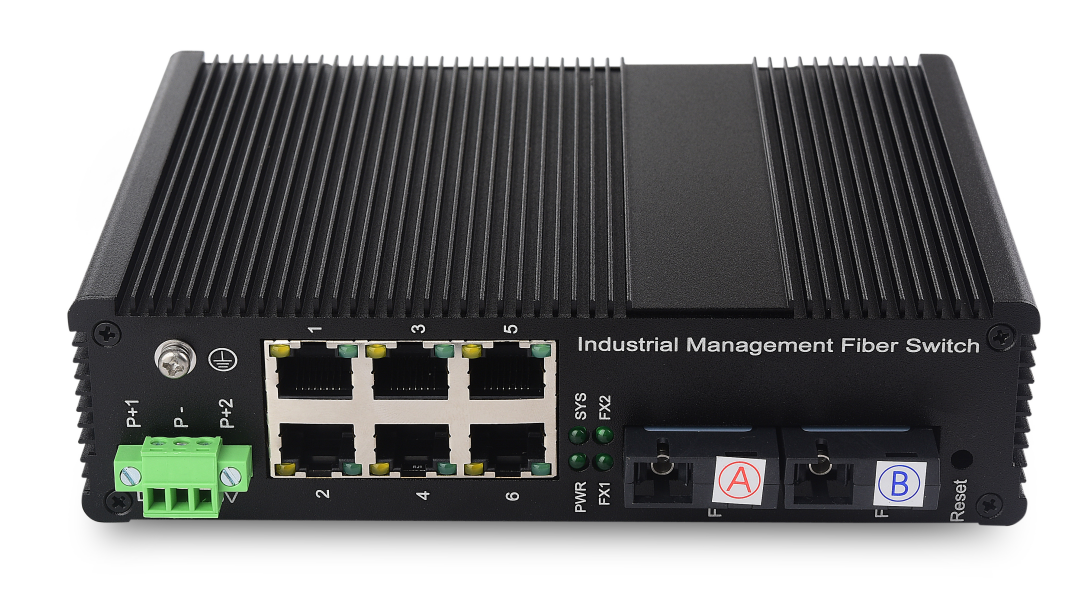

The CRS7228M-6T2F is a 100M Managed (DIN-Rail) Industrial Ethernet Switch. It supports 2*100Base-FX optical ports, 6*10/100Base-TX self-adaptive RJ45 interfaces. The switch supports both WEB and VLAN management, and features a robust QoS suite for effective data flow control and management. Additionally, it supports ring network protocols, RSTP and STP for Ethernet redundancy, port-based VLAN, IEEE 802.1Q VLAN and GVRP.
The products also adopt with fan-free, low power consumption, industrial design, working temperature range of -40~85℃, meeting the requirements of various industrial settings and providing a cost-effective solution. The equipment can be widely used in various broadband data transmission fields, such as intelligent buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy, and oilfields.

Specifications

Specifications 100M Managed (DIN-Rail) Industrial Ethernet Switch

Interface	2100Base-X , 610/100 Base-T 3P Phoenix terminal, dual power supply redundancy
PoE (Optional)	PoE Ports：1-6 PoE Protocols：802.3af 802.3at PoE Pin Assignment 1.2.3.6 PoE Management
Network Topology	Ring Topology Star Topology Bus Topology Tree Topology Hybrid Topology
Switching Characteristic	Switching Capacity：1.6G MAC Address Table：1K Vlan：16 VLAN IDs Packet Buffer：448K Forward Delay：<10us Jumbo Frame：10Kbytes Link Aggregation：12 Groups Multicast：IGMP Snooping
Power Supply	Input Voltage DC10~55V（PoE/DC48~55V） Power Consumption Non-PoE full load(Total power)<10W, PoE full load<90W
Physical Characteristic	Dimensions(W×H×D): 158×118×42 mm Weight: 0.75kg Case: IP40 metal case Install: DIN-Rail
Environment Limits	Work Temp: -40~+85°C Storage Temp: -40~+85°C Relative Humidity:5%~95%(non-condensing)
Industrial Standard	IEC 61000-4-5 Level 3（4KV/2KV）（8/20us） IEC 61000-4-5 Level 3（6KV/2KV）（10/700us） IEC 61000-4-3 Level 3 （10V/m） IEC 61000-4-4 Level 3 （1V/2V） IEC 61000-4-6 Level 3 （10V/m） IEC 61000-4-8 Level4（30A/m） IEC 61000-4-11 Level3 （10V） IEC 61000-4-2 Level 4 （15KV/30KV）
Warranty	5 years

Models

Models of 100M Unmanaged (DIN-Rail) Industrial Ethernet Switch

Available Models	Features
CRS7228M-6T2F	2100Base-FX optical interfaces, 610/100Base-TX self-adaptive RJ45 ports (default SC interface, ST/FC optional, Single-mode/Multi mode optional). DIN-Rail installation. -40℃~+85℃

Resources

Name	Version	Date
CRS7228M-6T2F Series Datasheet	V1.2	2024-10-25
